Convertisseur numérique FOLSOM IMAGE PRO HD

Share This
210.00 €(HT)
(le premier jour)

Convertisseur numérique universel multiformats.

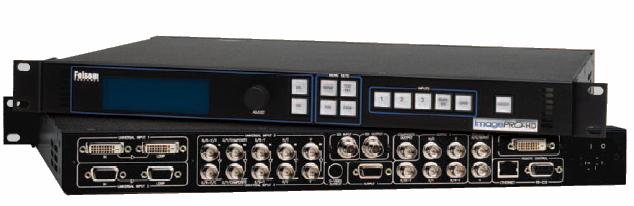

Photo HD

Télécharger le manuel d’utilisation de Folsom Image Pro HD

Inputs:
Universal Inputs: (3) high bandwidth video channels support, RGBHV/RGBS/RGsB computer video, component video
(STD or HDTV), S-video, or Composite video
Connectors: Input 1 and 2 on 15-pin HD connectors with buffered loop-through. Input 3 on five BNC connectors with
buffered loop-through. On ImagePRO-HD input 1 on DVI-I connectors.
Serial Digital Video Input: (1) SDI input on ImagePRO-SDI model, or SDI/HDSDI input on ImagePRO-HD
Connectors: BNC
Digital Video (DVI) Input: (1) Input on DVI-I connector supports both universal analog and DVI input with loop-through
Input Resolution Range: VGA (640×480), SVGA(800×600), XGA(1024×768), SXGA(1280×1024), UXGA(1600×1200),
HDTV 480p, 720p, 1080p, 1080i, 875 RS-343, 525 RS-170
Standard Resolution Video Input: NTSC, PAL or SECAM
Horizontal Frequency: 15 kHz to 120 kHz
Vertical Frequency: 25 Hz to 120 Hz
Input Termination: 75 Ohm
Input Sync: Sync-on-Video, Separate C or H/V
External Sync (Genlock) Input: Blackburst, Computer H/V Sync or C-sync.
Connectors: BNC
Video Output
Outputs:
RGB or component video (STD or HDTV) on HD-15, RGB or component video (STD or HDTV) or composite video on
BNC, S-video on 4-pin mini-DIN connector
SDI on BNC, ImagePRO with SDI and ImagePRO-HD models only, or SDI/HDSDI input on ImagePRO-HD
DVI output on DVI-D connector on ImagePRO-HD model only
Standard resolution video output: NTSC, PAL
High resolution output supported: VGA (640×480), SVGA(800×600), XGA(1024×768), SXGA(1280×1024),
UXGA(1600×1200). For Plasma Displays 1280×768, 1365×768, 1365×1024. HDTV 480p, 720p,
1080p, 1080i. 875 RS-343, 525 RS-170
Sync: RGBHV, RGBS, RGsB, TTL level, Polarity selectable, HDTV, Tri-level Sync supported
75 ohm Output Impedance
